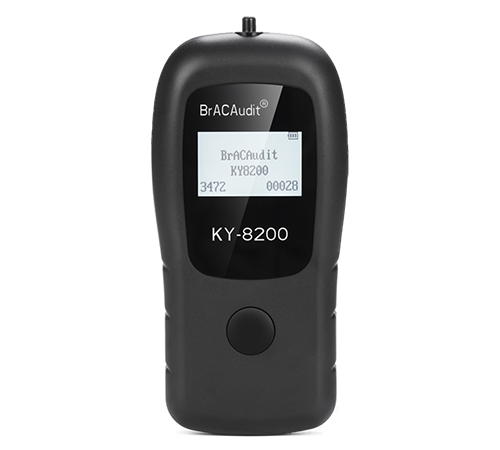

KY-8200 Breath Alcohol Analyzer
详细介绍
Product features：
• UK made Electrochemical/Fuel cell Sensor: Highly specificity to alcohol, unaffected by other breath contaminants;
• Data Handling Ability: Compact gas circuit design and advanced analysis process assure fast, accurate and stable testing performance;
• Both active and passive sampling available,more convinent for users;
• Small volume and easy carry over.
| Details | Technical Data | |
| Principle of measurement | Electrochemical Sensor, alcohol-specific | |
| Measurement Range (BrAC) | 0.000mg/L～2.500 mg/L | |
| Resolution | 0.001 mg/L | |
| Temperature range -operation | 0°C 〜40°C | |
| Temperature range –storage | －20℃～70℃ | |
| Display | 128X64 black and white screen | |
| Optimum Storage Conditions | Temperature：20°C ±5°C Humidity：<80%RH Pressure：86 kpa～106 kpa No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device | |
| Blowing Time | 3seconds（breath flow： ≥20L/min） | |
| Dimension(L*W*T) & Weight | Approx. 134mm *65mm *30mm; Approx. 116g（ (including battery) | |
| Batteries | 1.5AAA×3 | |
